Engineered to Stop Fire in Its Tracks
Kosavi fire rated steel doors are designed for compartmentation, protected escape routes, and code-compliant fire safety — built for projects where failure is not an option.
Fire Door Applications
Four primary configurations — each engineered for its specific installation environment and fire safety requirement.

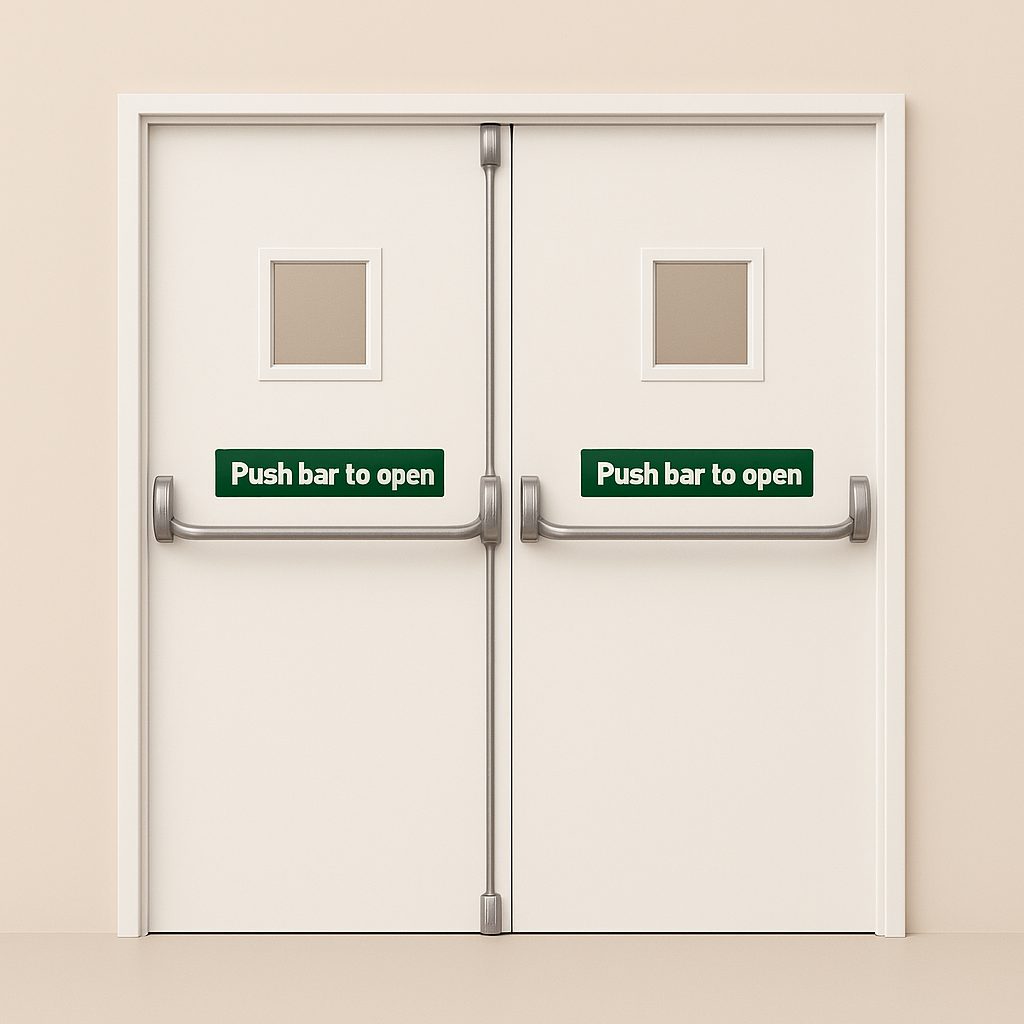

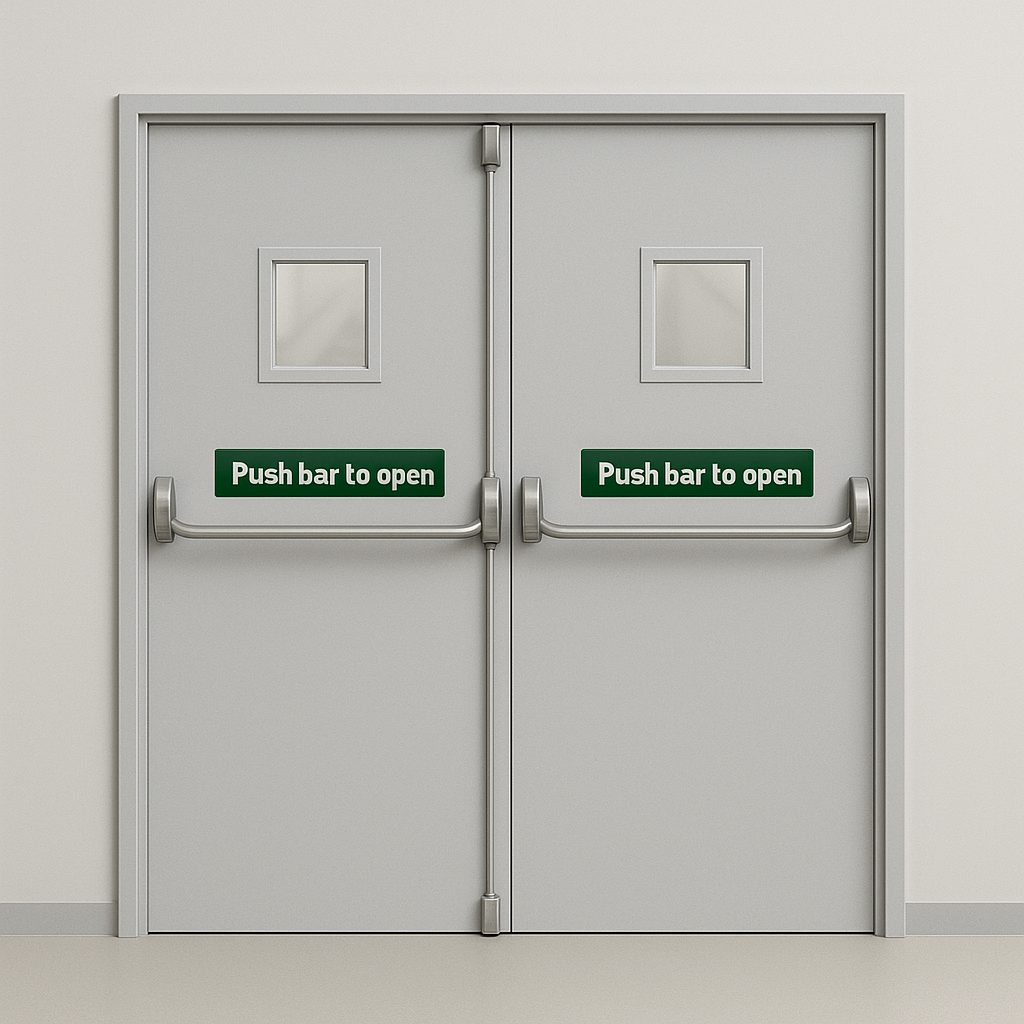

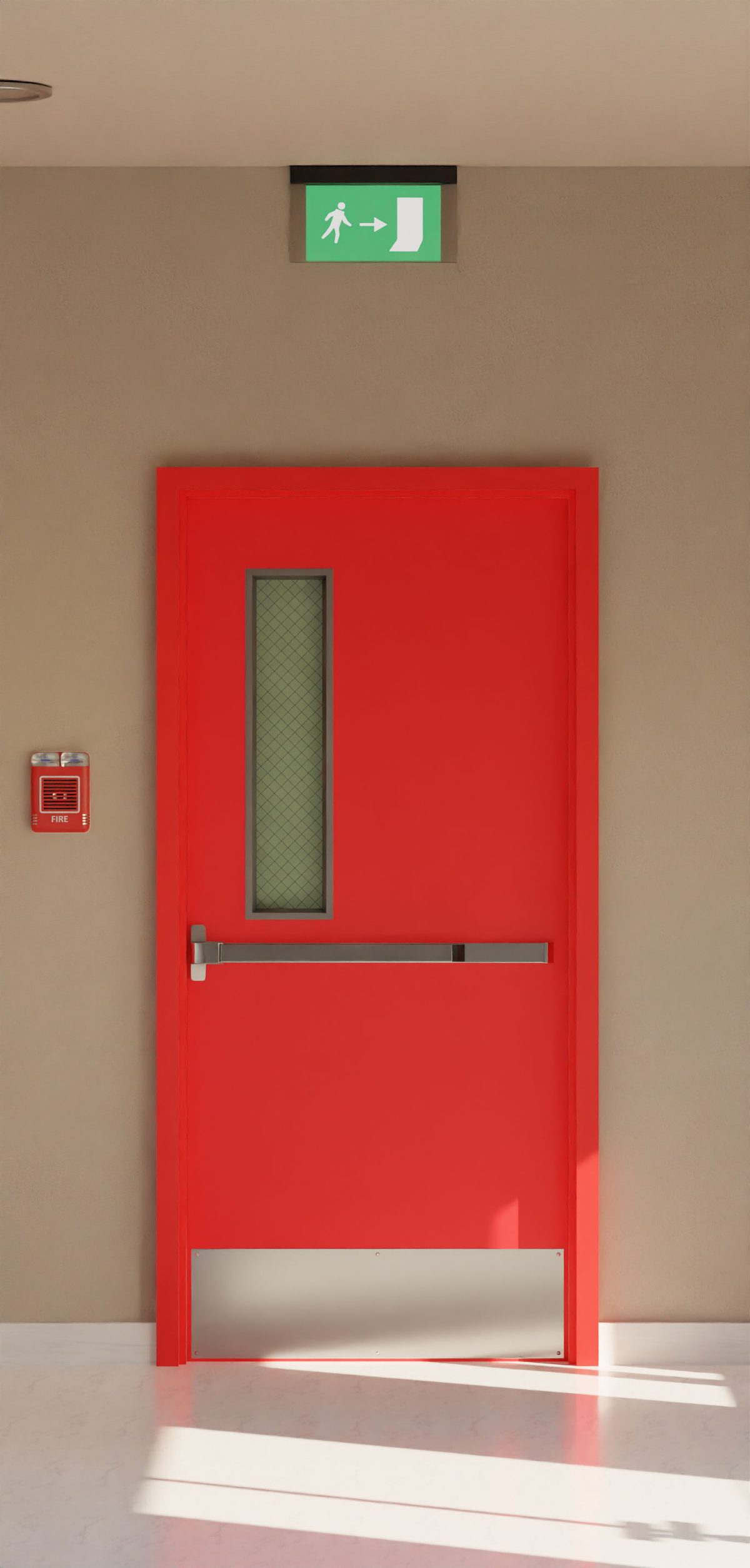

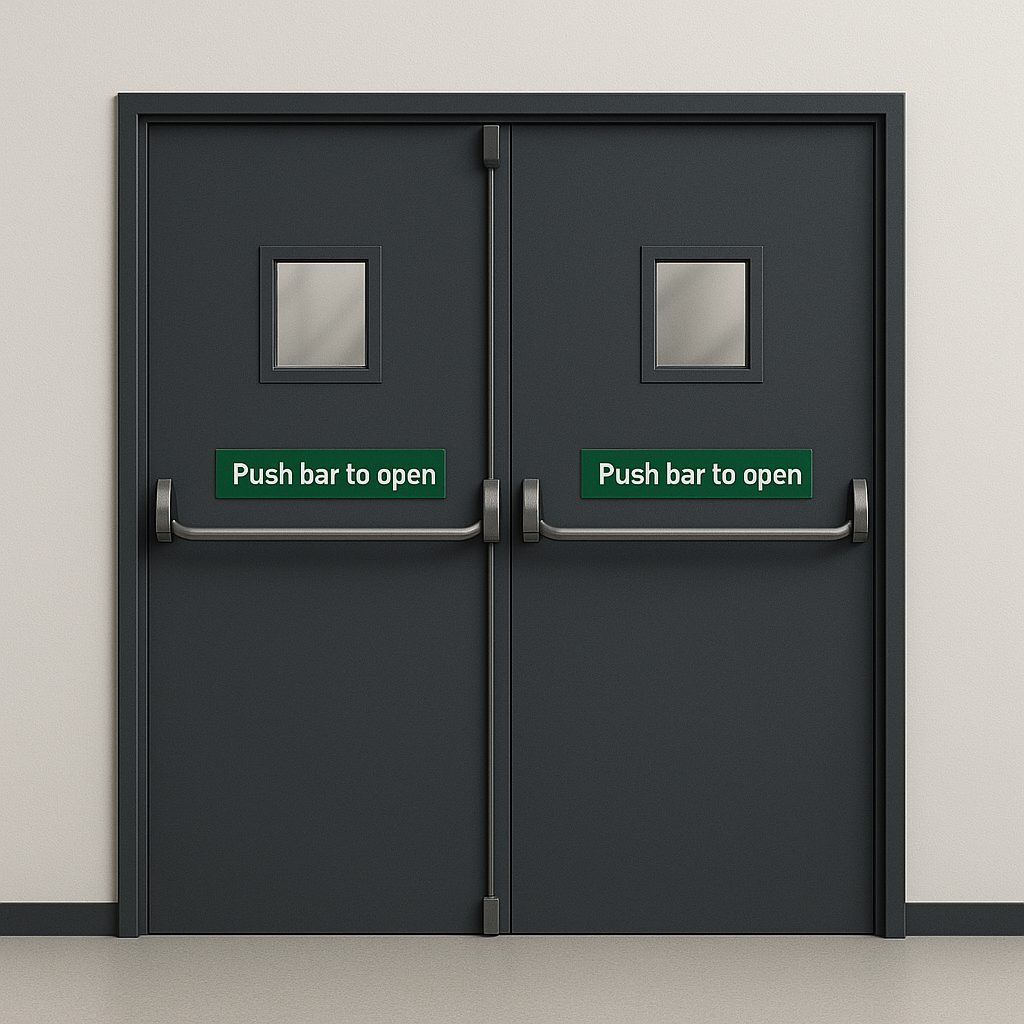

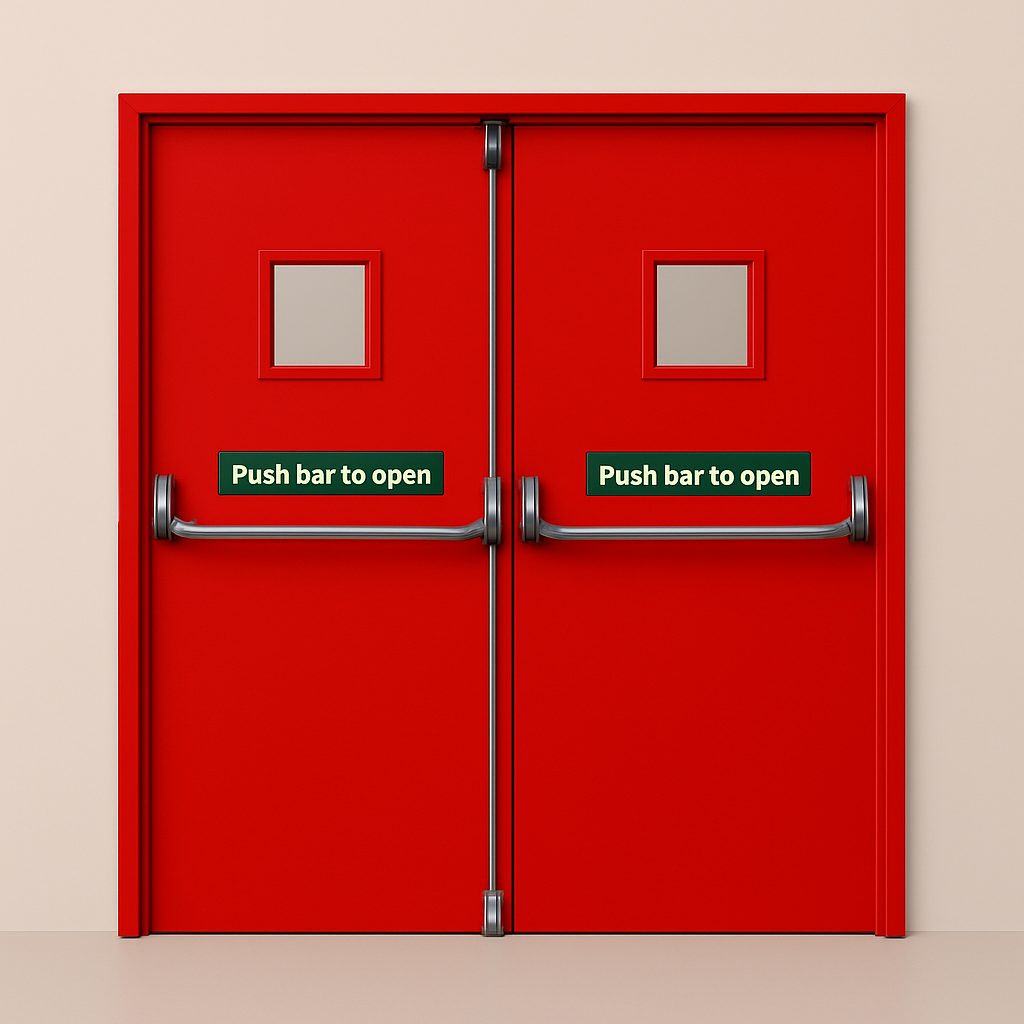

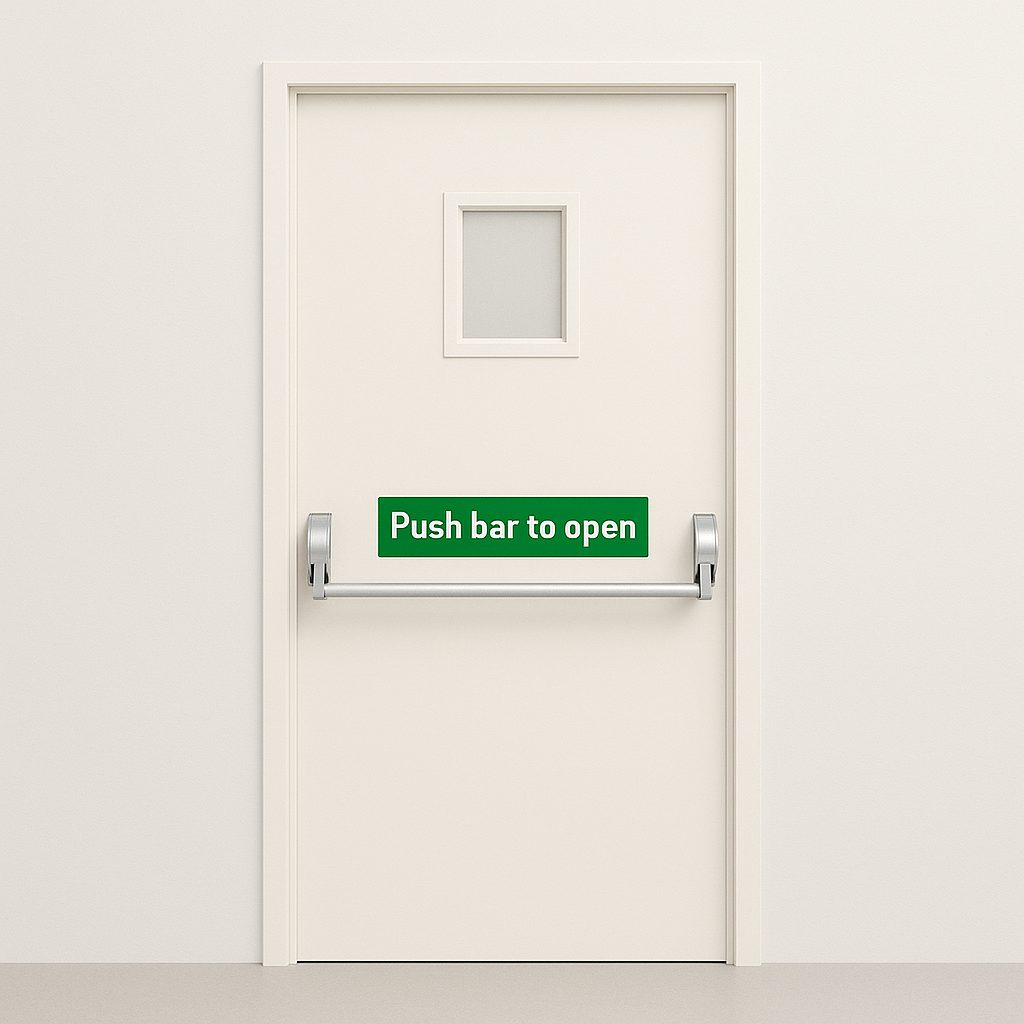

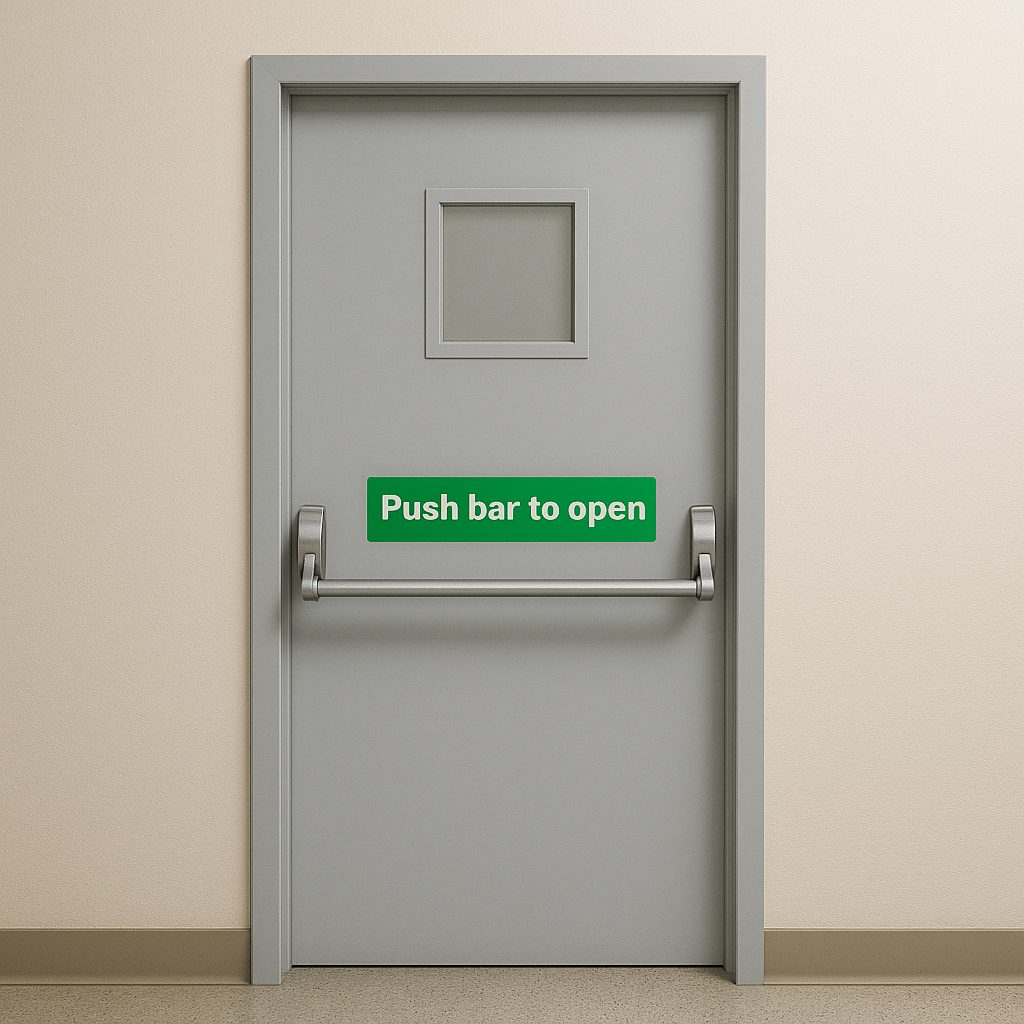

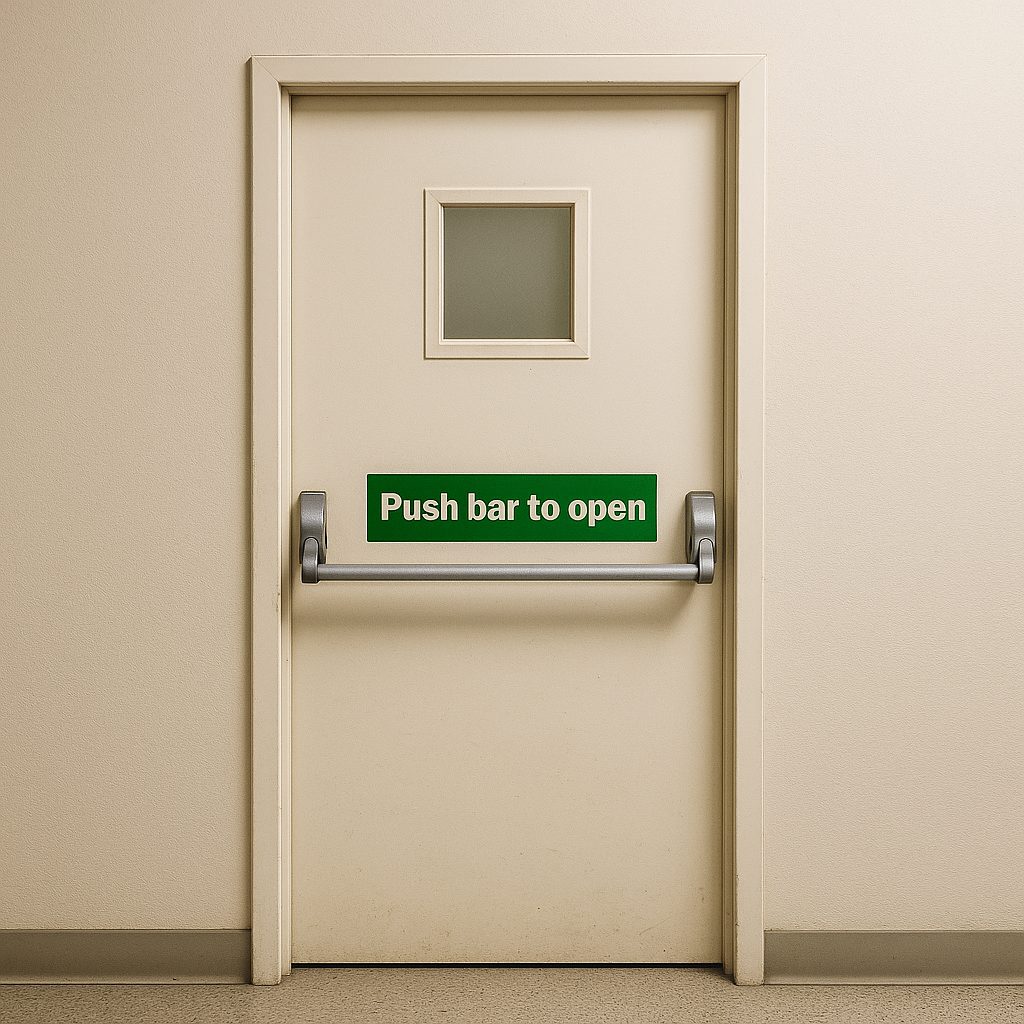

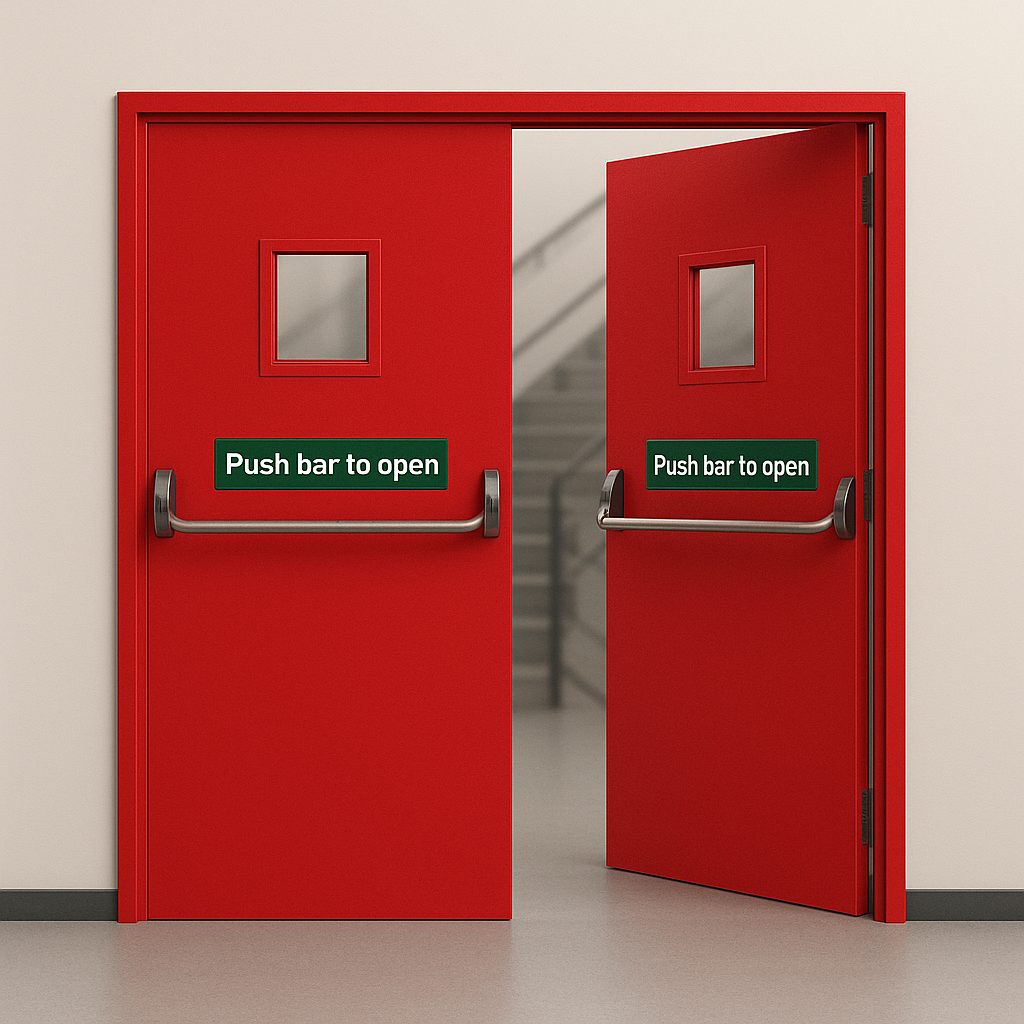

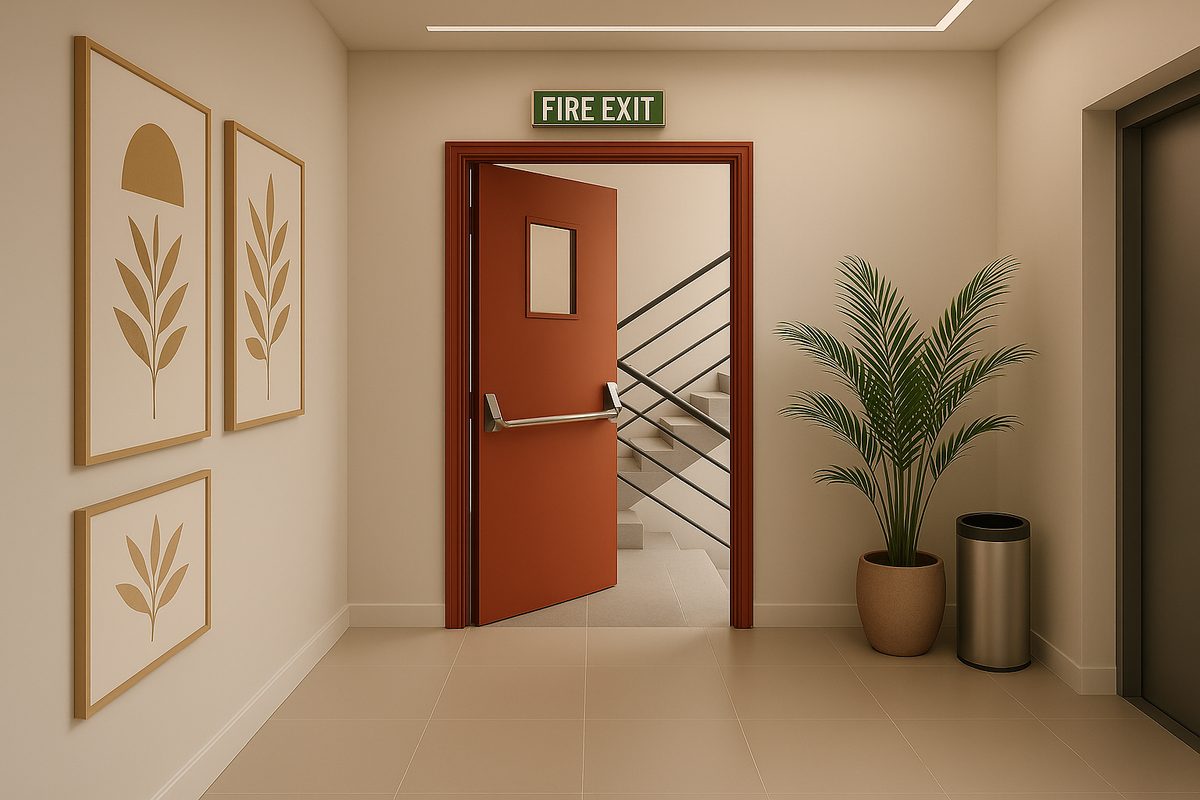

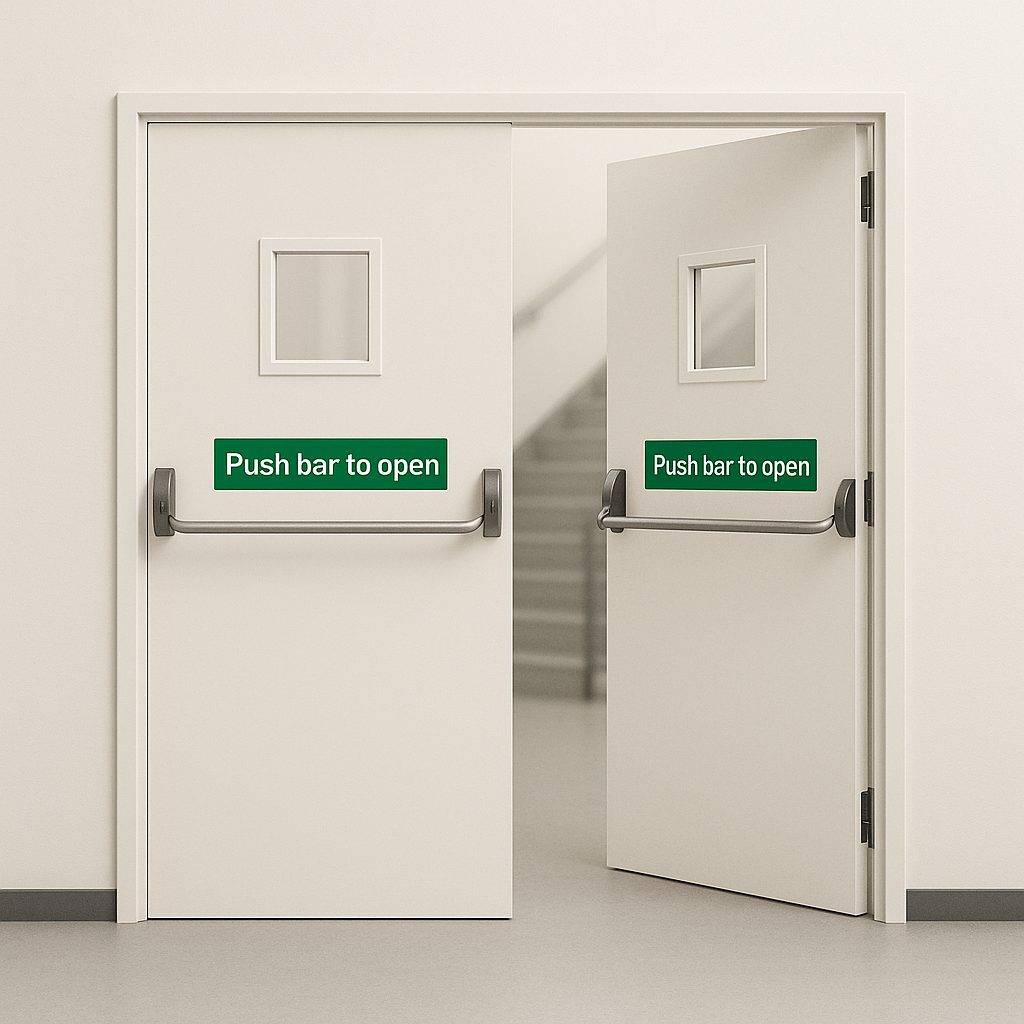

Fire Exit Doors
Single and double leaf fire exit doors for staircases, lobbies, and escape routes. Panic bar hardware compatible.
- 30 / 60 / 90 min rating
- Single & double leaf
- Panic bar ready

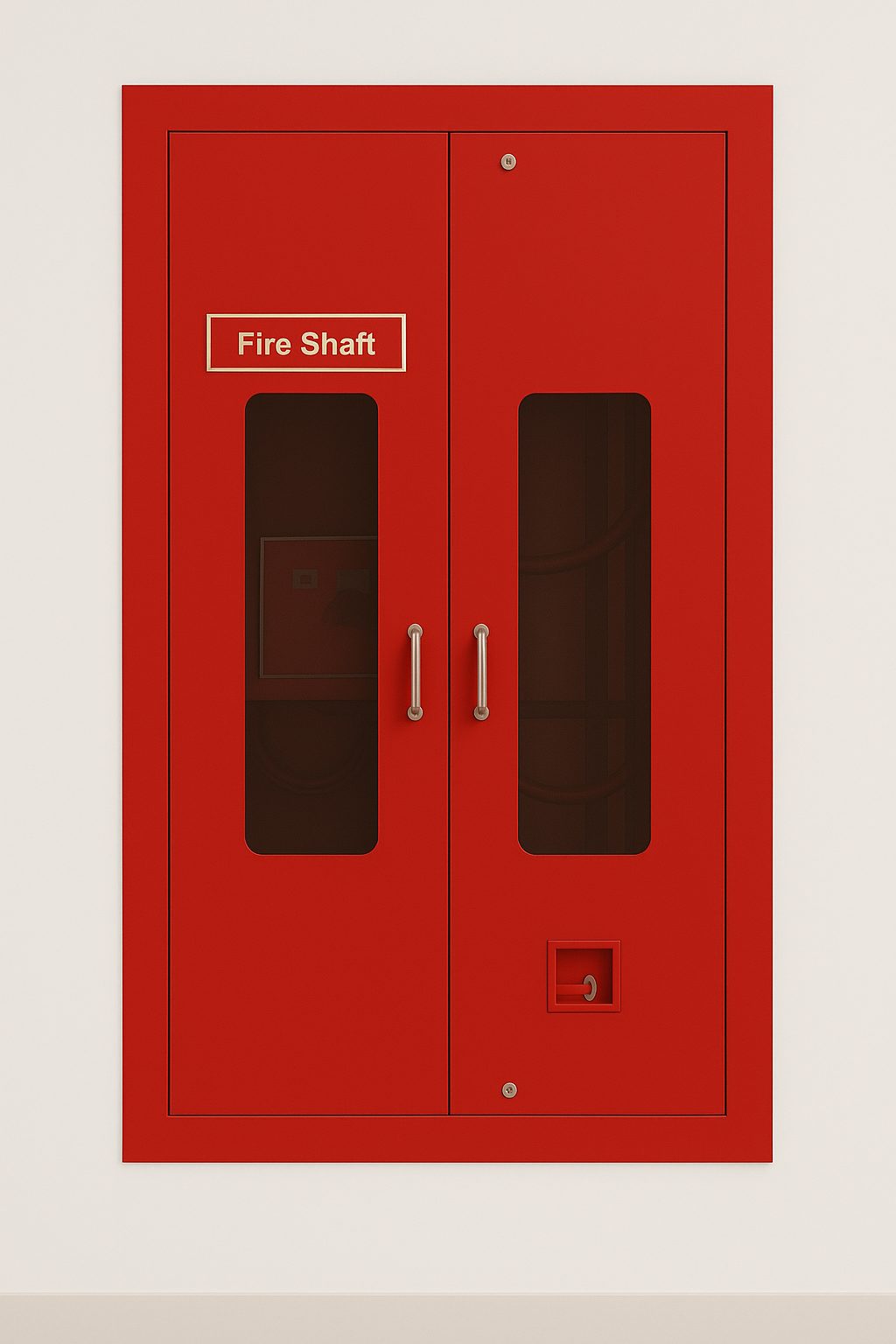

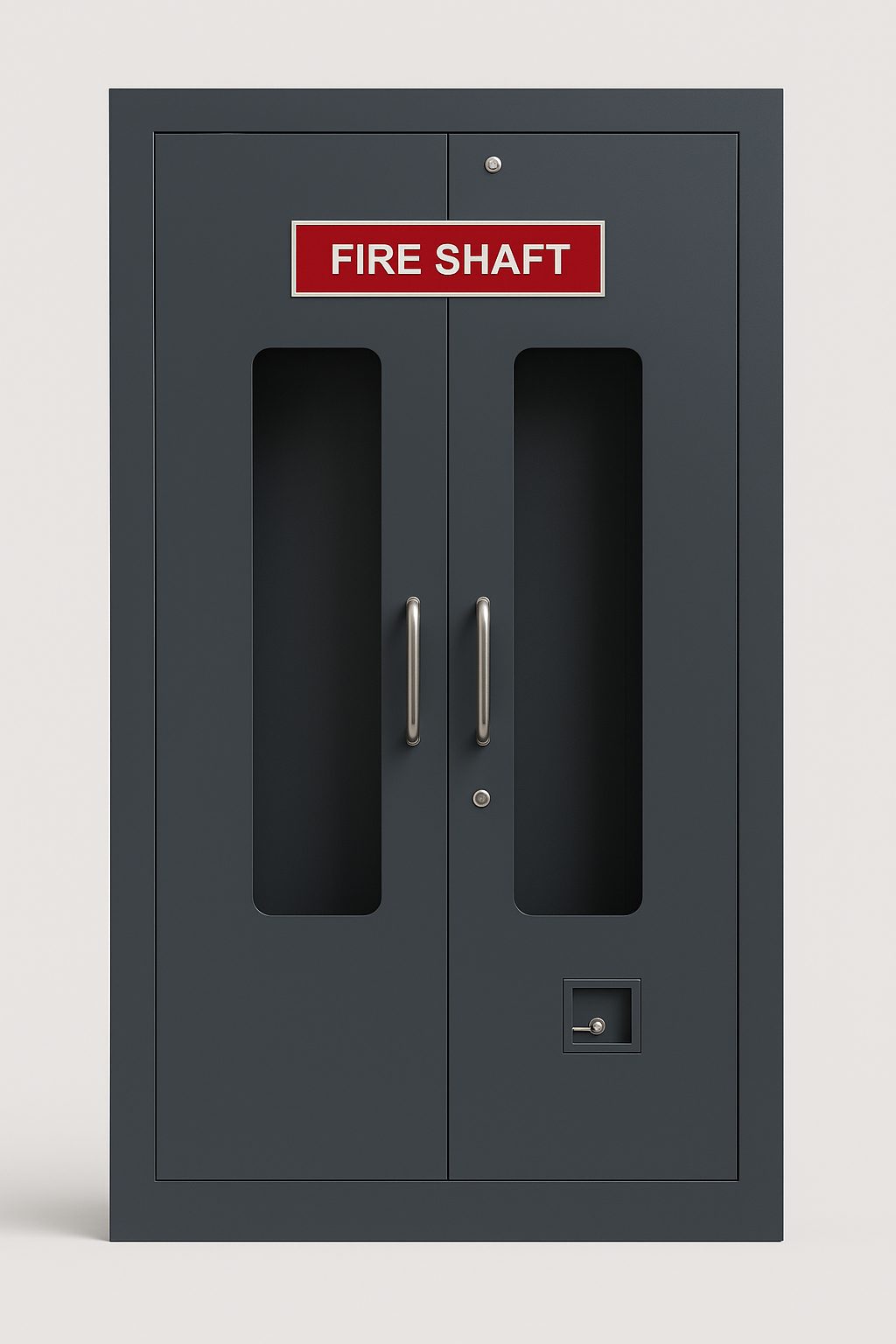

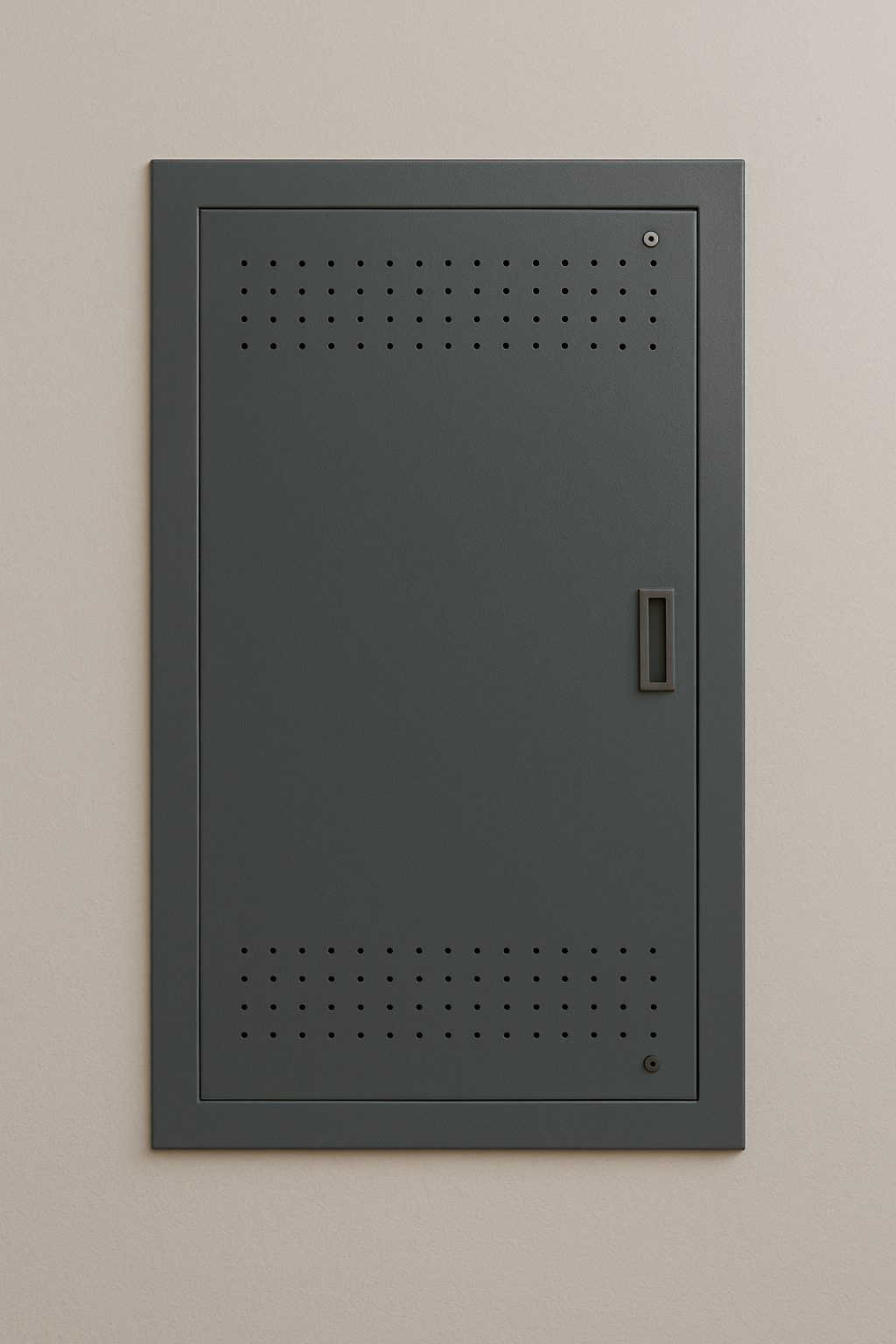

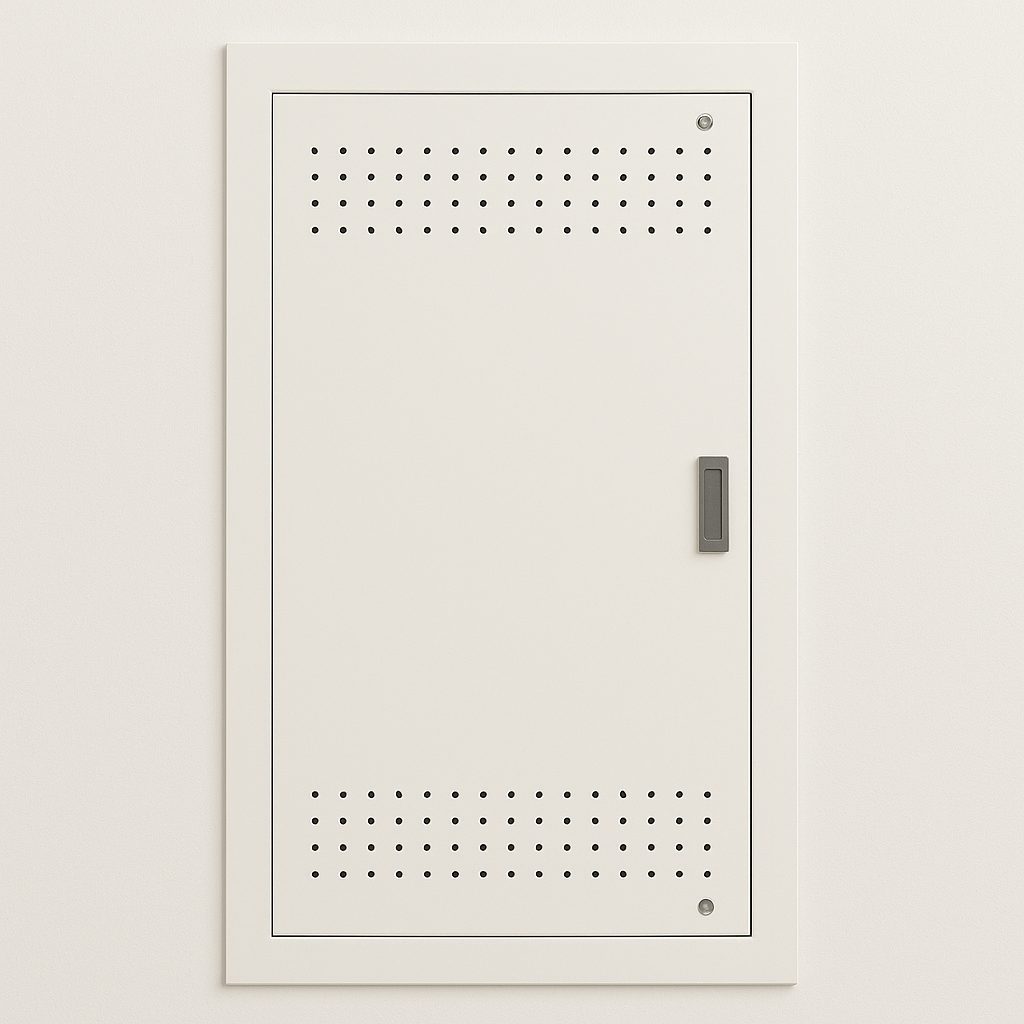

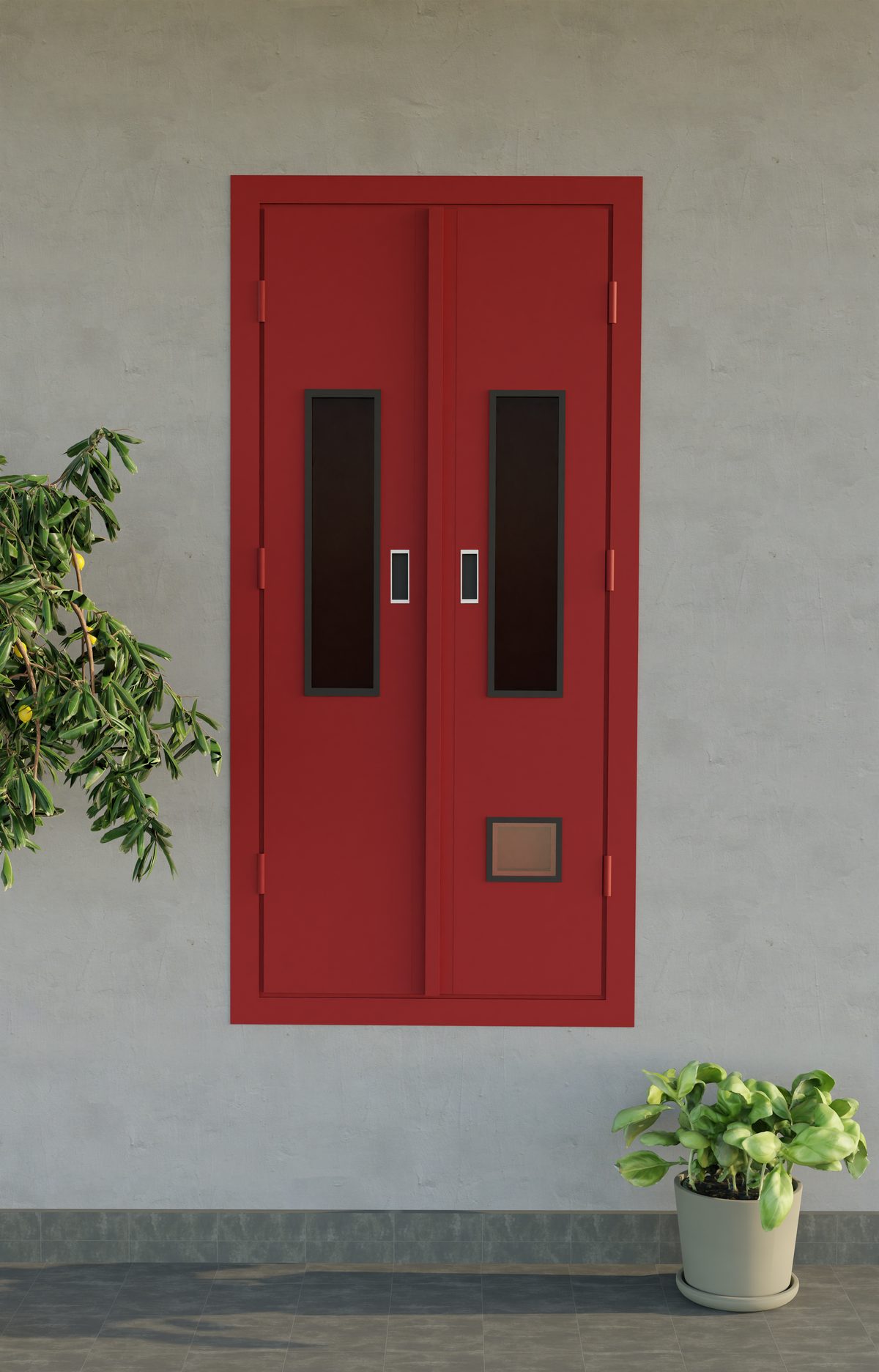

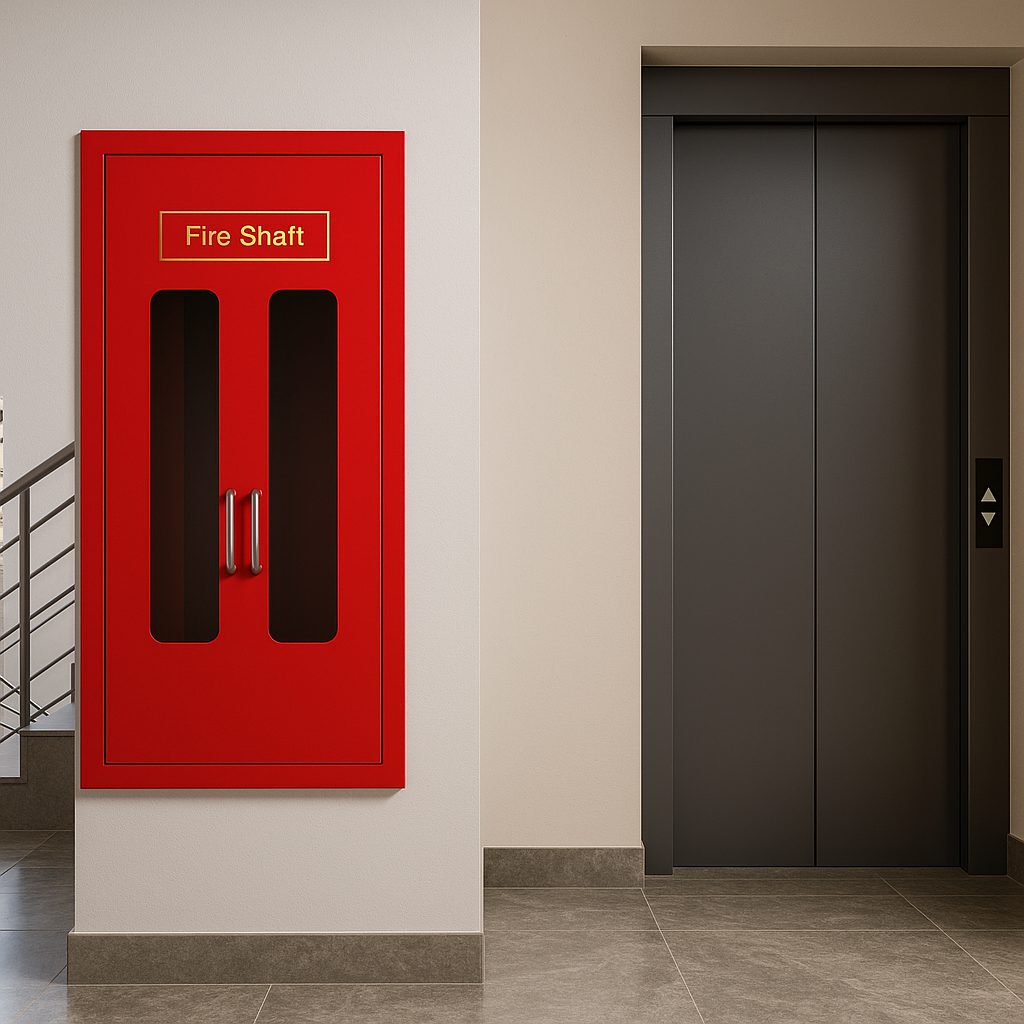

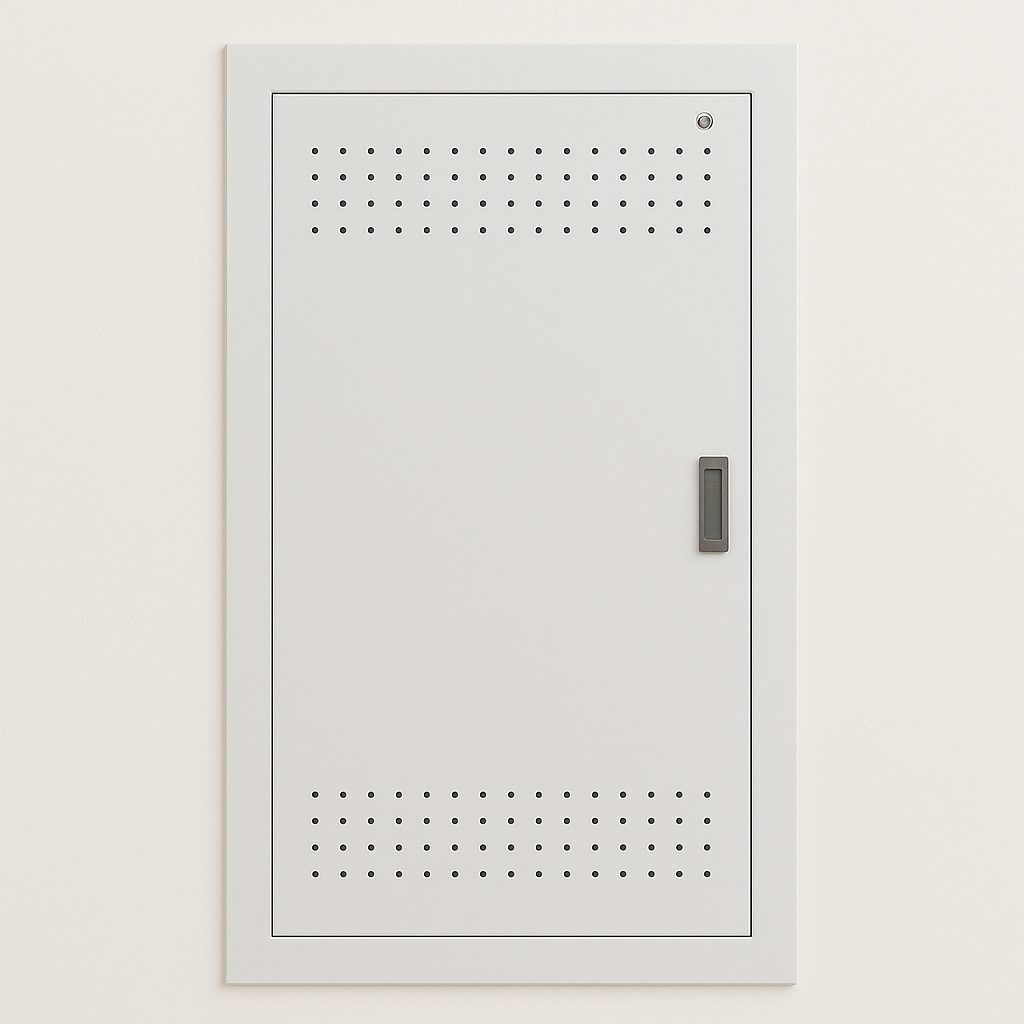

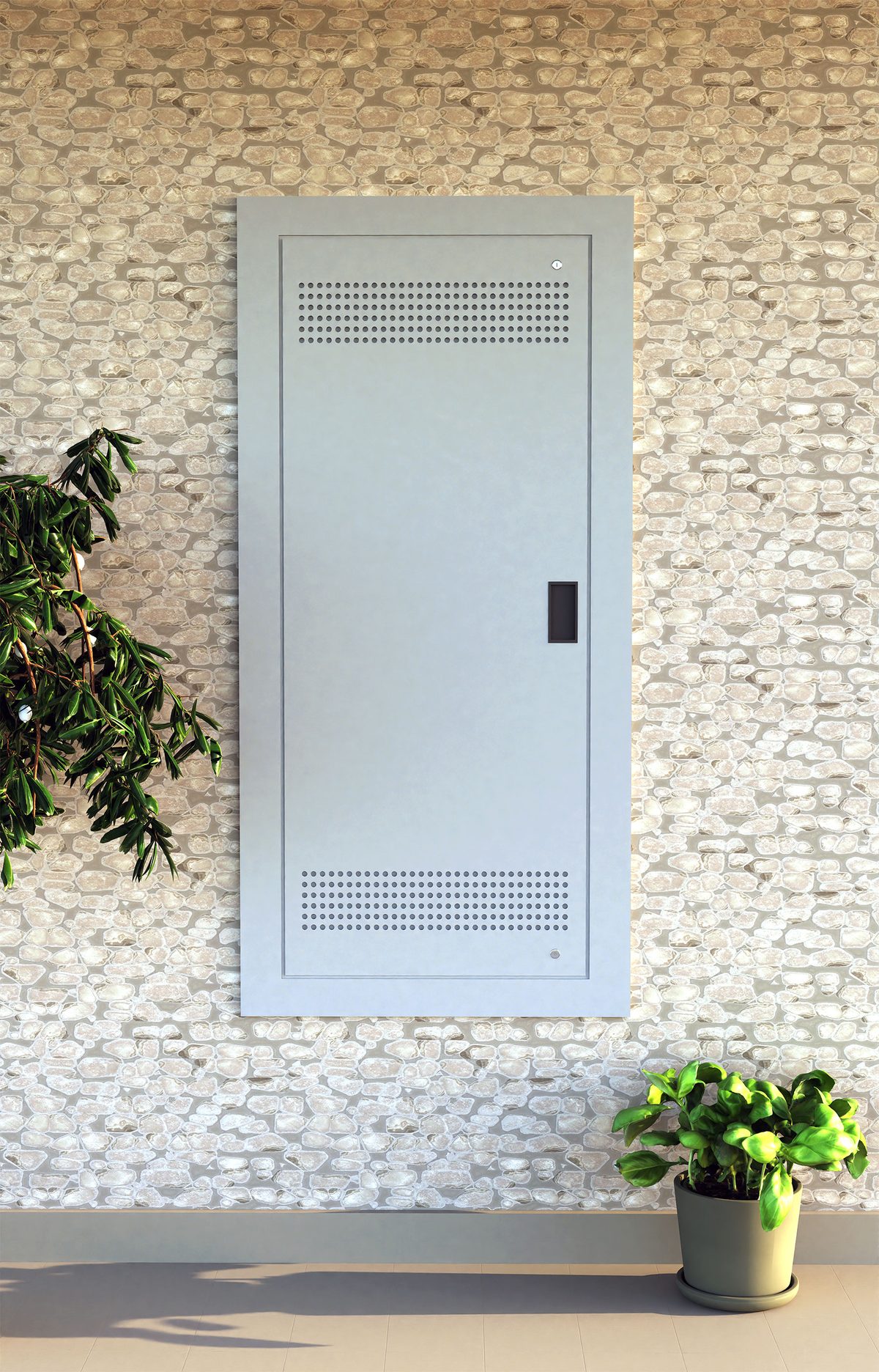

Shaft & Duct Doors
Fire rated access doors for service shafts, electrical risers, and utility zones. Maintains fire compartmentation in vertical service runs.
- 60 / 120 min rating
- Flush & semi-recessed
- Access panel compatible

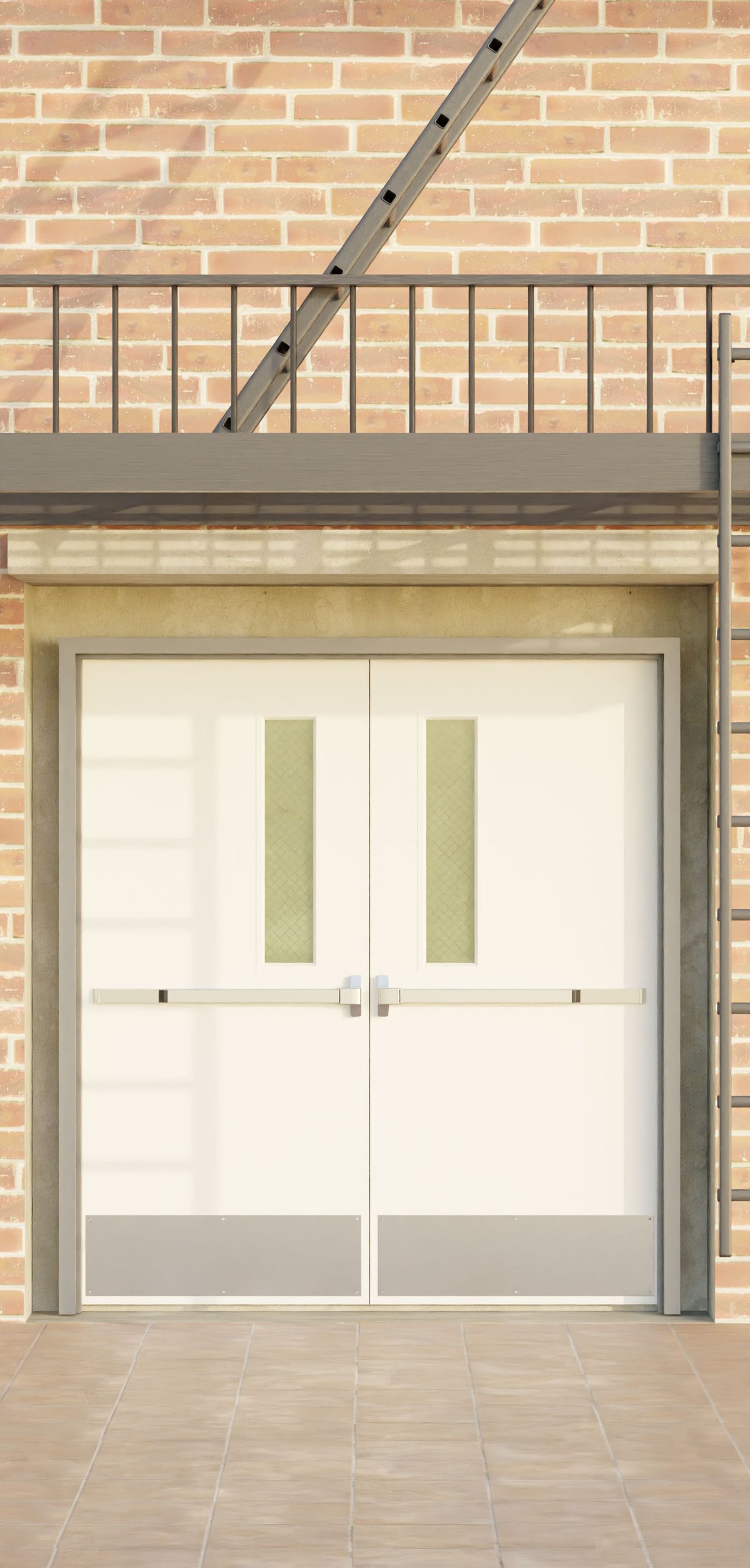

Staircase Doors
Staircase enclosure doors protecting fire-protected escape routes in multi-storey buildings. Self-closing mechanism standard.
- 60 / 90 min rating
- Self-closing hardware
- Smoke seal standard

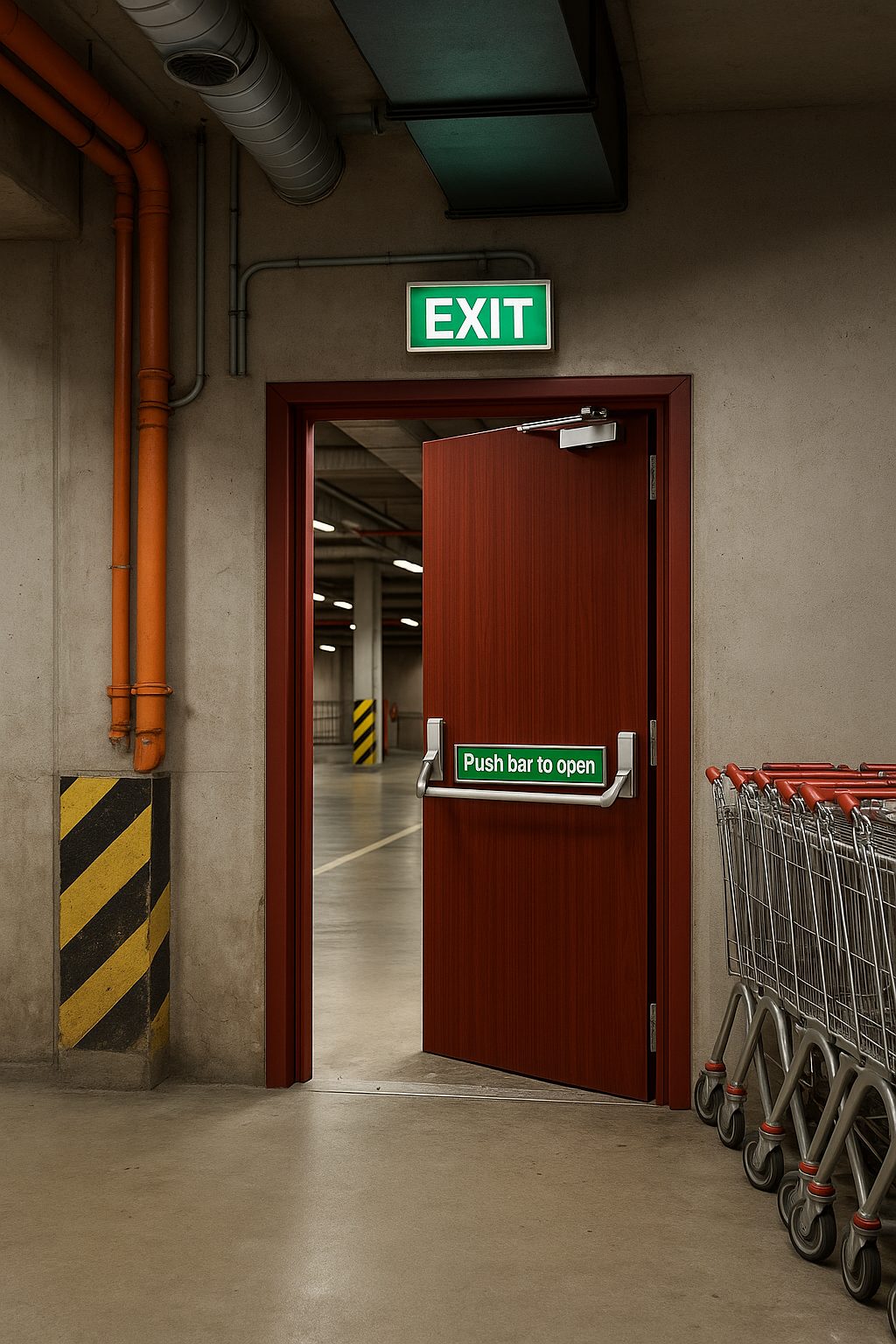

Basement & Utility Doors
Fire rated doors for basement access, electrical rooms, and service areas where regulated compartmentation is mandated.
- 60 / 90 / 120 min rating
- Heavy duty construction
- Custom sizing available
What's Inside Every Door
Every Kosavi fire rated door is manufactured to a defined technical standard. The specifications below reflect our standard production range — custom configurations available on project enquiry.
| Door Leaf Skin | 1.2 mm – 0.8 mm GPSP steel (both faces) |
|---|---|
| Core Material | Mineral wool / rock wool insulation (fire rated) | Honeycomb (uninsulated) |
| Door Leaf Thickness | 46 mm standard |
| Frame Material | 1.2 mm – 1.6 mm GPSP steel |
| Frame Profile | 100 mm × 58 mm standard | custom profiles on request |
| Fire Rating | 120 min NABL Approved LAB |
| Smoke Resistance | Intumescent + Smoke seals, 3-sided |
| Intumescent Seals | Intumescent seals on door edge and frame rebate (standard) |
| Vision Panel | 5 mm Fire Rated Pyron glass |
| Max Single Leaf Size | 1,200 mm (W) × 2,400 mm (H) |
| Max Double Leaf Size | 2,400 mm (W) × 2,400 mm (H) |
| Opening Direction | Inward / Outward | Single or double action |
| Standard Hardware | SS butt hinges, overhead door closer, Panic Bar + Trim |
| Optional Hardware | Lever handle Lock |
| Surface Finish | Powder coated (standard) |
| Acoustic Performance | Up to 32 dB (special specification) |
| Custom Sizing | Available on project order | Lead time 4–6 weeks |
Specified Hardware. Every Time.
Fire door hardware is not an afterthought — it's part of the rated assembly. All hardware is selected and fitted to maintain the fire integrity of the door set.
Overhead Door Closer
EN 1–6 rated overhead closer. Ensures controlled self-closing action — mandatory for fire doors in escape routes.

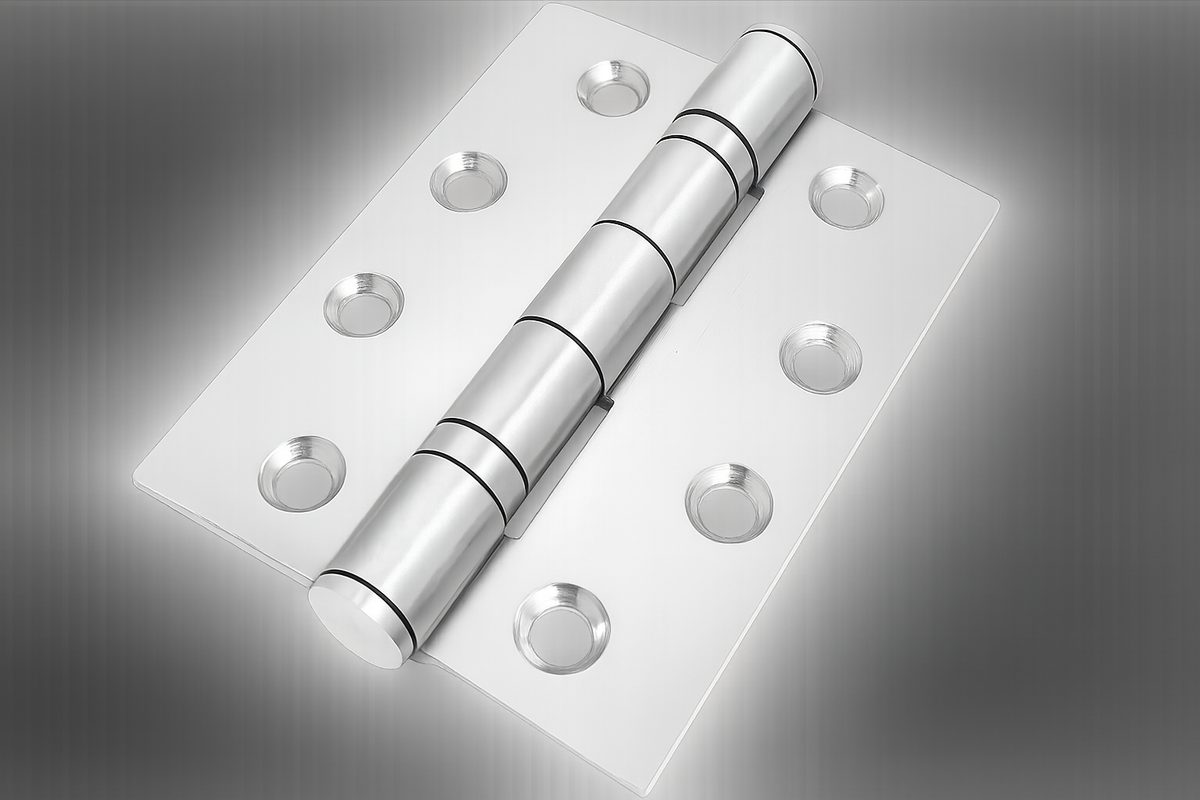

Steel Butt Hinges
Stainless steel or steel butt hinges, fire rated. Minimum 3 hinges per leaf. Load-rated for heavy steel door weight.

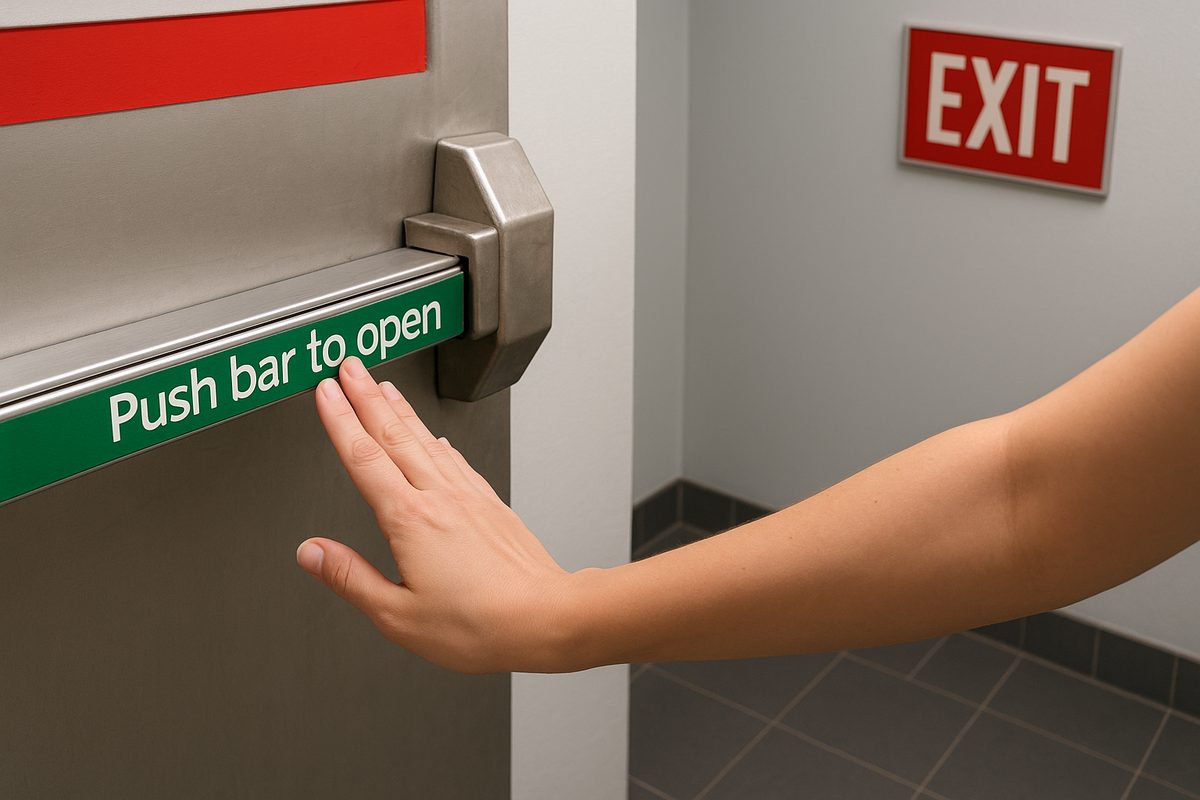

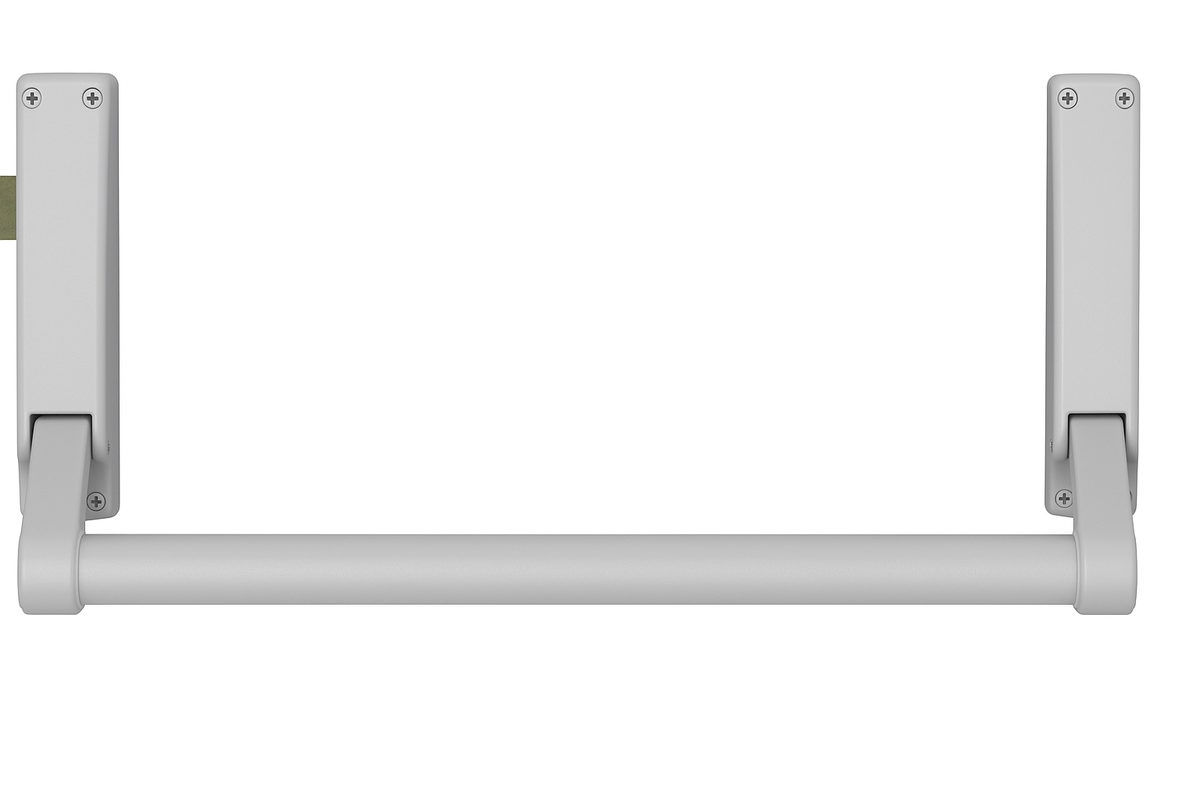

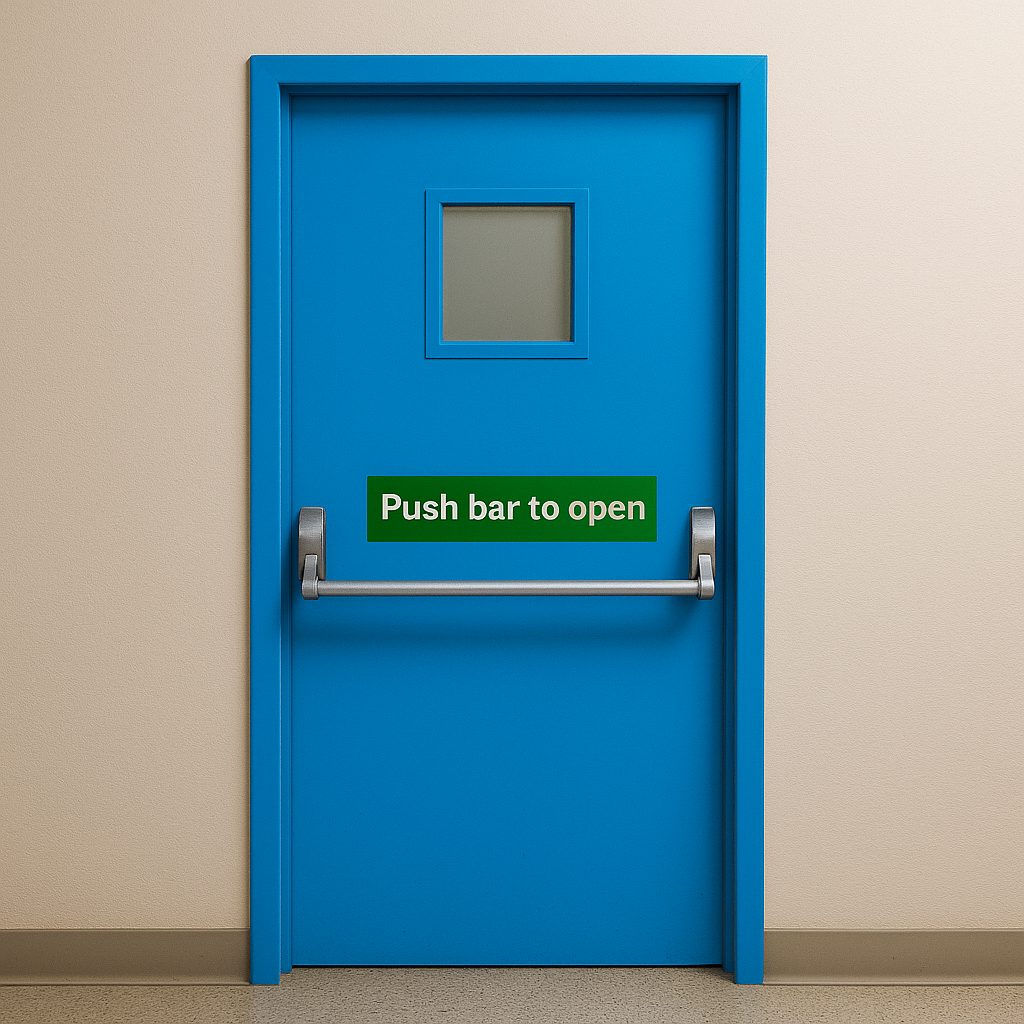

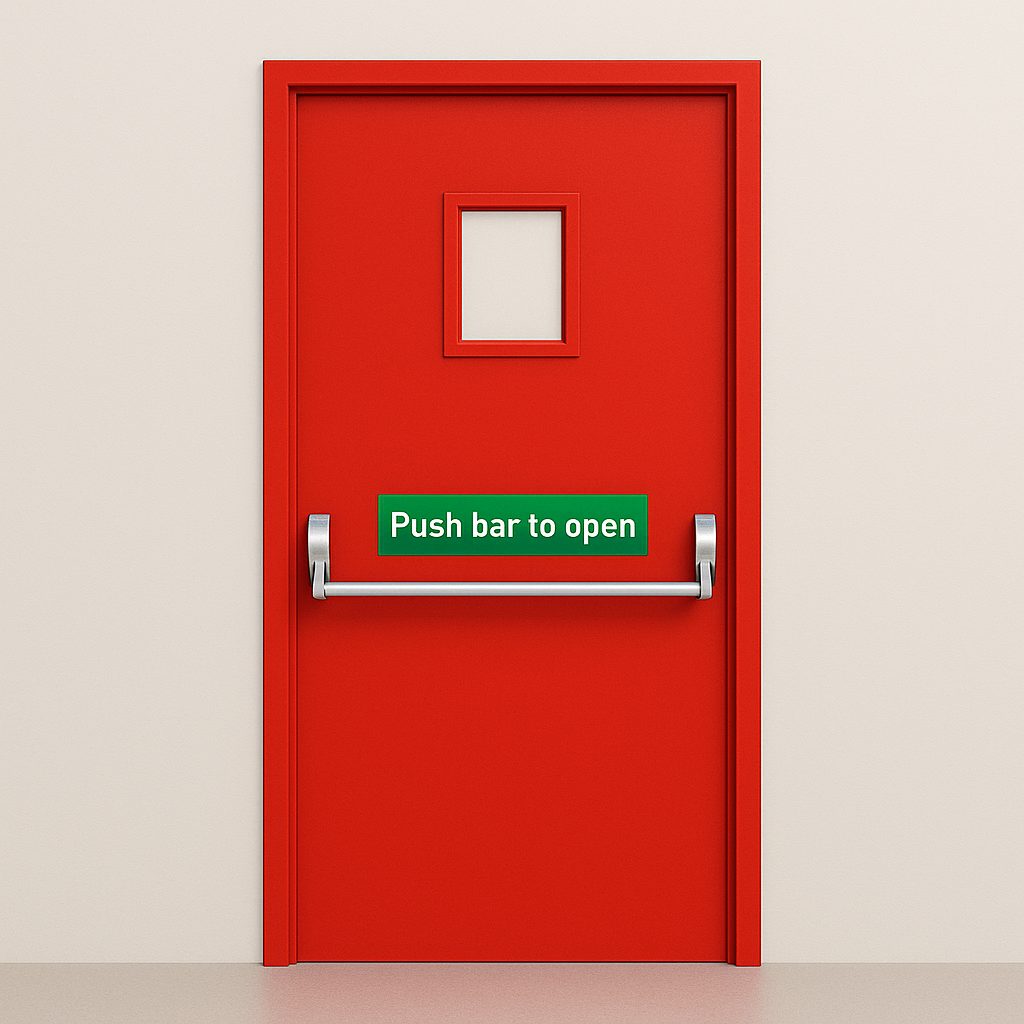

Panic Bar (Touch Bar)
Single-action panic release bar for emergency egress compliance. EN 1125 rated. Essential for public escape routes.

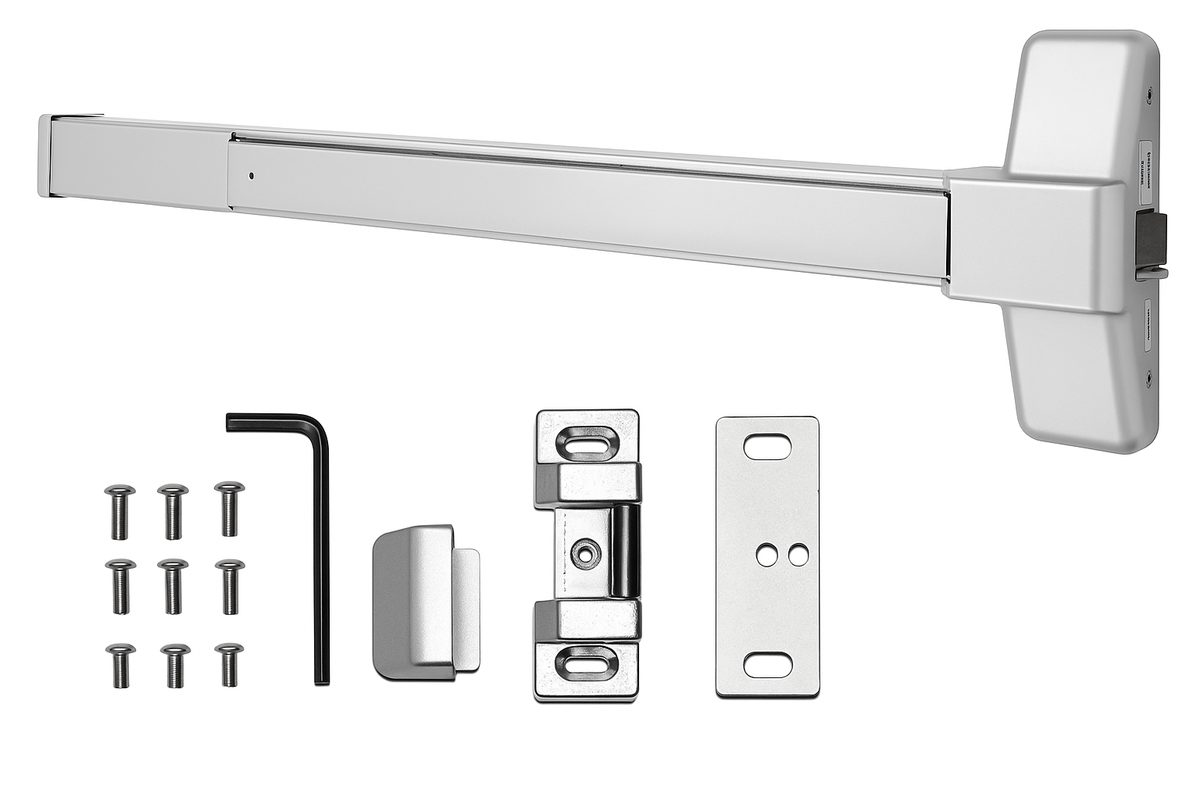

Box-Type Panic Bar
Recessed box-type panic device for double-leaf installations. Provides coordinated release with rebate and weather seal.

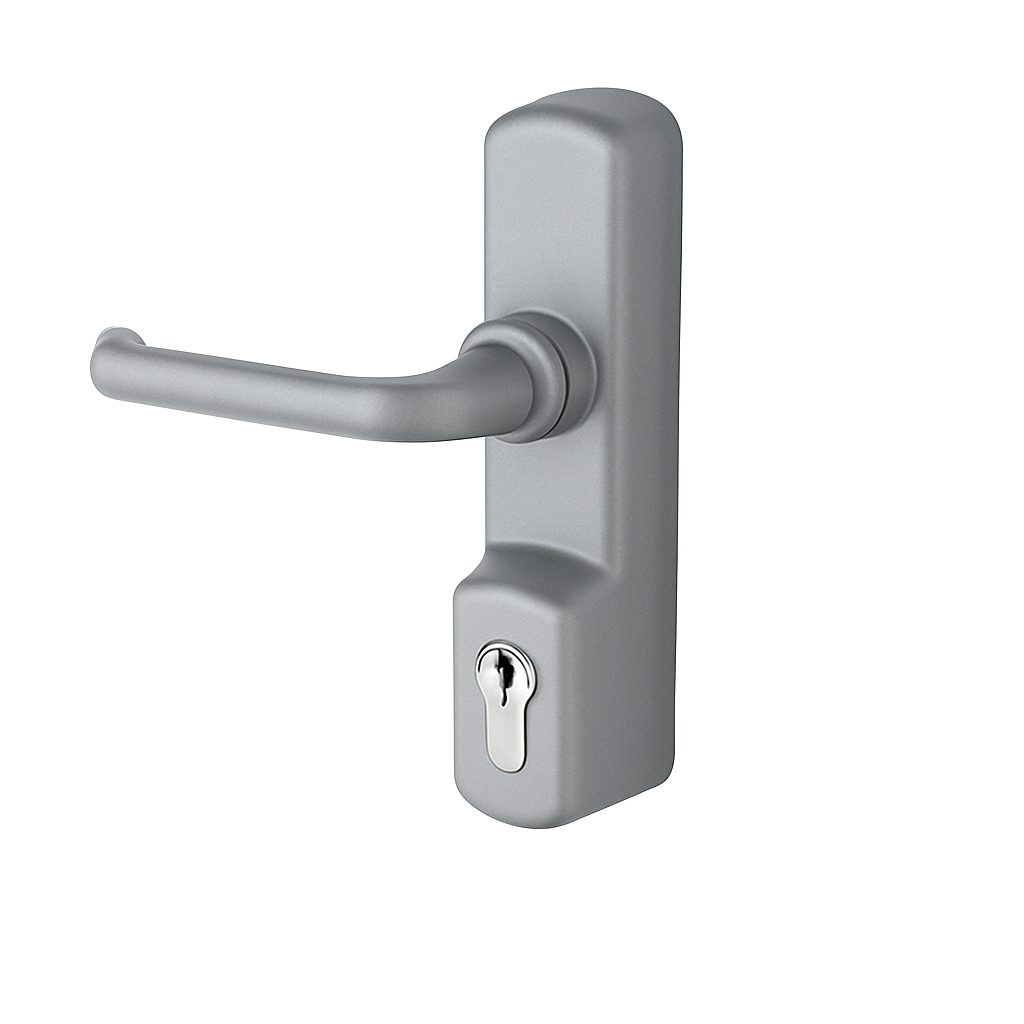

External Trim & Pull Handle
Stainless steel external lever or pull handle trim. Compatible with single-point and multi-point locking systems.

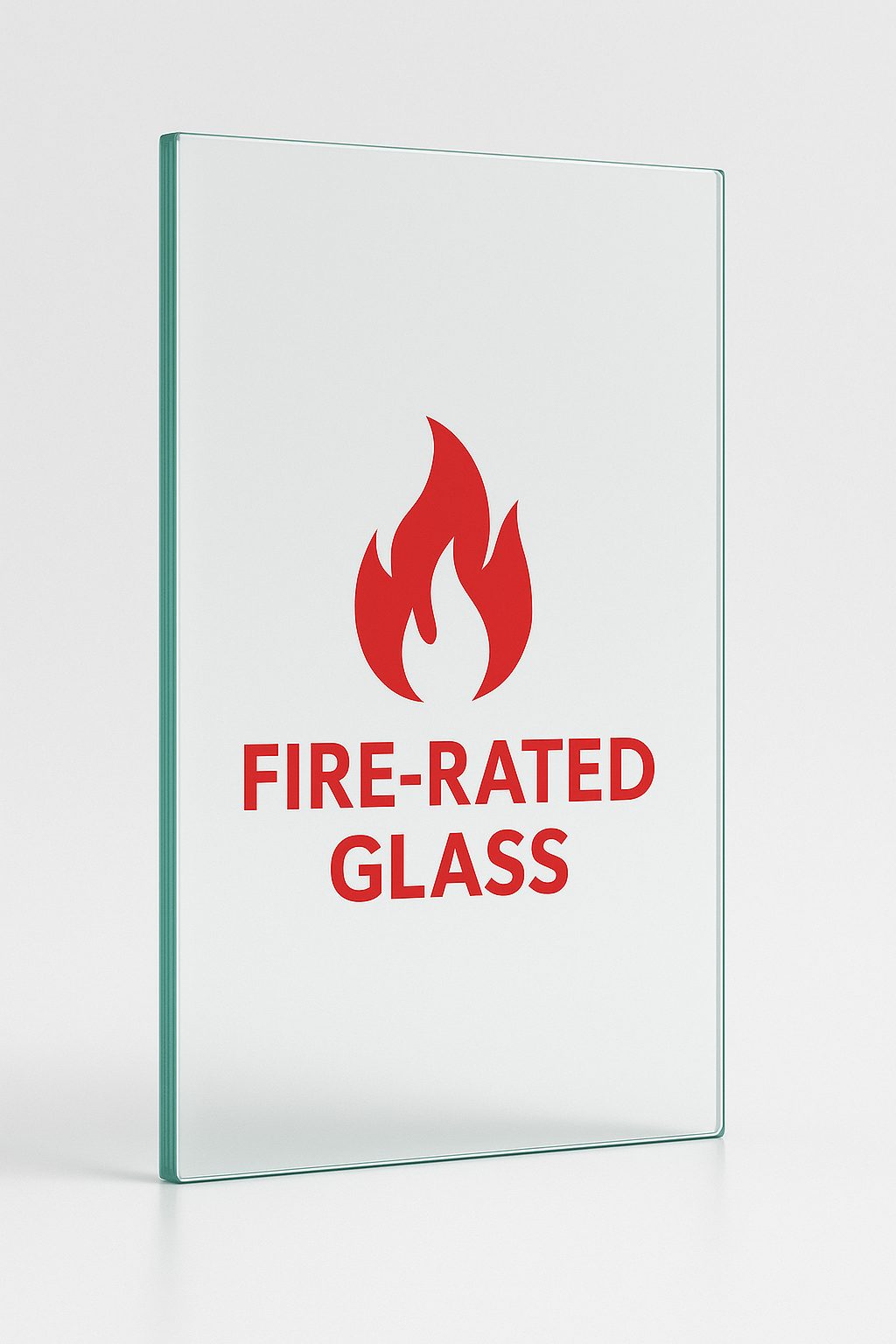

Fire Rated Glass
5 mm ceramic fire-rated glass or wired glass vision panel. Maintains fire compartmentation while providing sightlines.
Fire Rated Door Gallery
27 product images across exit doors, shaft doors, staircase doors, and basement applications. Click any image to view full size.
Specifying Fire Rated Doors?
Contact Kosavi for product details, configuration options, compliance documentation, and project quotation support.
